LS-CPT10 Portable CPT & Vane In-Situ Test System

Configured for laboratory and production workflows

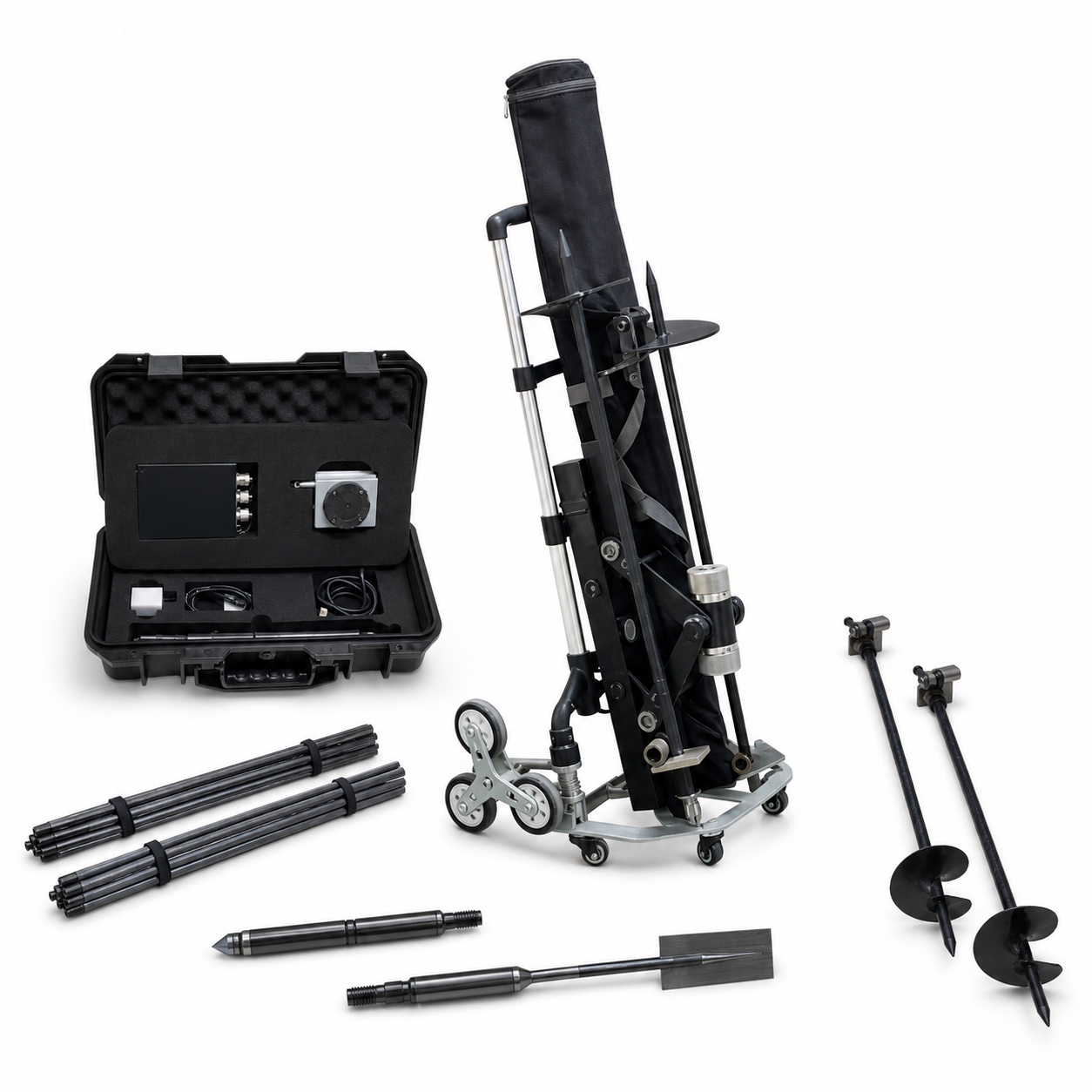

LS-CPT10 packages shallow cone penetration and electric vane shear capabilities into a transportable field system weighing about 20 kg. The lever-driven frame is intended for sites that cannot accommodate a full-size CPT truck and can be configured to record cone tip resistance, sleeve friction, pore pressure, and vane torque through a portable data logger.

Push Force

>10 kN

Lever-driven

Depth

Up to 10 m

Suitable strata

Weight

~20 kg

Portable system

Direct Inquiry Technical Chat

LS-CPT10 Portable CPT & Vane In-Situ Test System

CPT and Vane in One Field Package

Combines cone resistance, sleeve friction, pore-pressure, and electric vane torque channels so a field team can compare complementary in-situ indicators from one portable kit.

Restricted-Access Deployment

The compact lever frame and lightweight ground anchors support shallow investigation where a 200 kN CPT truck or large hydraulic rig cannot reach the test point.

Portable Digital Acquisition

A battery-powered logger and field software capture profiles and vane results without requiring a laboratory controller or mains-powered workstation.

Configuration Review Before Purchase

Mini-CPT probe areas and achievable depth depend on the requested method, soil profile, reaction setup, and project standard; Lithostek confirms these parameters with each quotation.

Application & Search Guide

Testing Method

Portable in-situ soil testing with CPT, penetrometer, and vane shear instruments

LS-CPT10 Portable CPT & Vane In-Situ Test System is in-situ soil testing equipment for portable mini-CPT, CPTU, and electric vane shear investigation. It supports site-investigation teams that need portable data while keeping screening estimates distinct from final design parameters and laboratory strength results.

Technical FAQ

What is LS-CPT10 Portable CPT & Vane In-Situ Test System used for?

LS-CPT10 Portable CPT & Vane In-Situ Test System is used for portable in-situ soil testing workflows in civil engineering materials laboratories, quality control labs, research programs, and construction material acceptance testing.

Which standards does LS-CPT10 support?

LS-CPT10 supports ASTM, EN, AASHTO, or project-specific laboratory procedures. Lithostek can also configure reporting fields, accessories, and calibration documents around local project or laboratory requirements.

Can Lithostek configure LS-CPT10 for my laboratory?

Yes. Lithostek application engineers can review specimen format, target standards, throughput, power supply, data output, and training requirements before quoting a suitable configuration.
