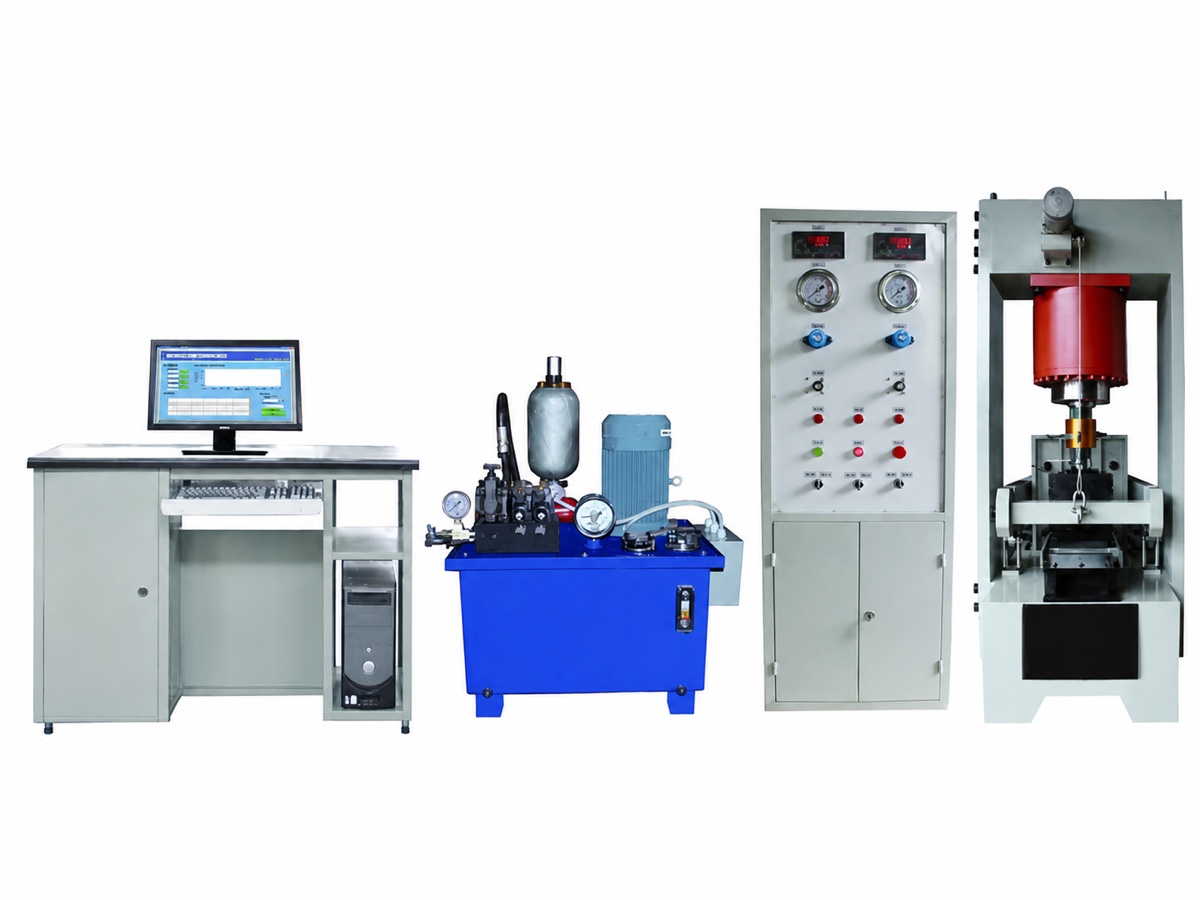

LS-RM-DS1000 1000 kN Rock Weak-Plane Direct Shear System

Configured for ISRM Suggested Methods workflows

LS-RM-DS1000 1000 kN Rock Weak-Plane Direct Shear System is a rock direct shear testing machine for joints and interfaces for ISRM Suggested Methods workflows.

Normal Load

1000 kN

High-stress testing

Shear Load

600 kN

Horizontal actuator

Control

Force / Displacement

Closed loop

Direct Inquiry Technical Chat

LS-RM-DS1000 1000 kN Rock Weak-Plane Direct Shear System ISRM Suggested Methods

High Normal-Stress Capability

Normal loading to 1000 kN supports interface and discontinuity studies beyond routine 500 kN systems.

Force and Displacement Control

Closed-loop loading can be configured by stage, amplitude, rate, force, or displacement for research programs.

Automated Test Records

The workstation collects, displays, stores, processes, and reports normal load, shear load, and displacement channels.

Standards

Standard

ISRM Suggested Methods

Application & Search Guide

Testing Method

Rock joint, weak-plane, and interface direct shear testing

LS-RM-DS1000 1000 kN Rock Weak-Plane Direct Shear System is a rock direct shear testing system for intact rock, joints, bedding planes, weak layers, fault materials, and rock-concrete interfaces under ISRM Suggested Methods. It supports slope, tunnel, dam, mining, and foundation laboratories that need controlled normal loading with synchronized shear force and displacement measurement.

Technical FAQ

What is LS-RM-DS1000 1000 kN Rock Weak-Plane Direct Shear System used for?

LS-RM-DS1000 1000 kN Rock Weak-Plane Direct Shear System is used for rock joint and interface direct shear testing workflows in civil engineering materials laboratories, quality control labs, research programs, and construction material acceptance testing.

Which standards does LS-RM-DS1000 support?

LS-RM-DS1000 supports ISRM Suggested Methods. Lithostek can also configure reporting fields, accessories, and calibration documents around local project or laboratory requirements.

Can Lithostek configure LS-RM-DS1000 for my laboratory?

Yes. Lithostek application engineers can review specimen format, target standards, throughput, power supply, data output, and training requirements before quoting a suitable configuration.
