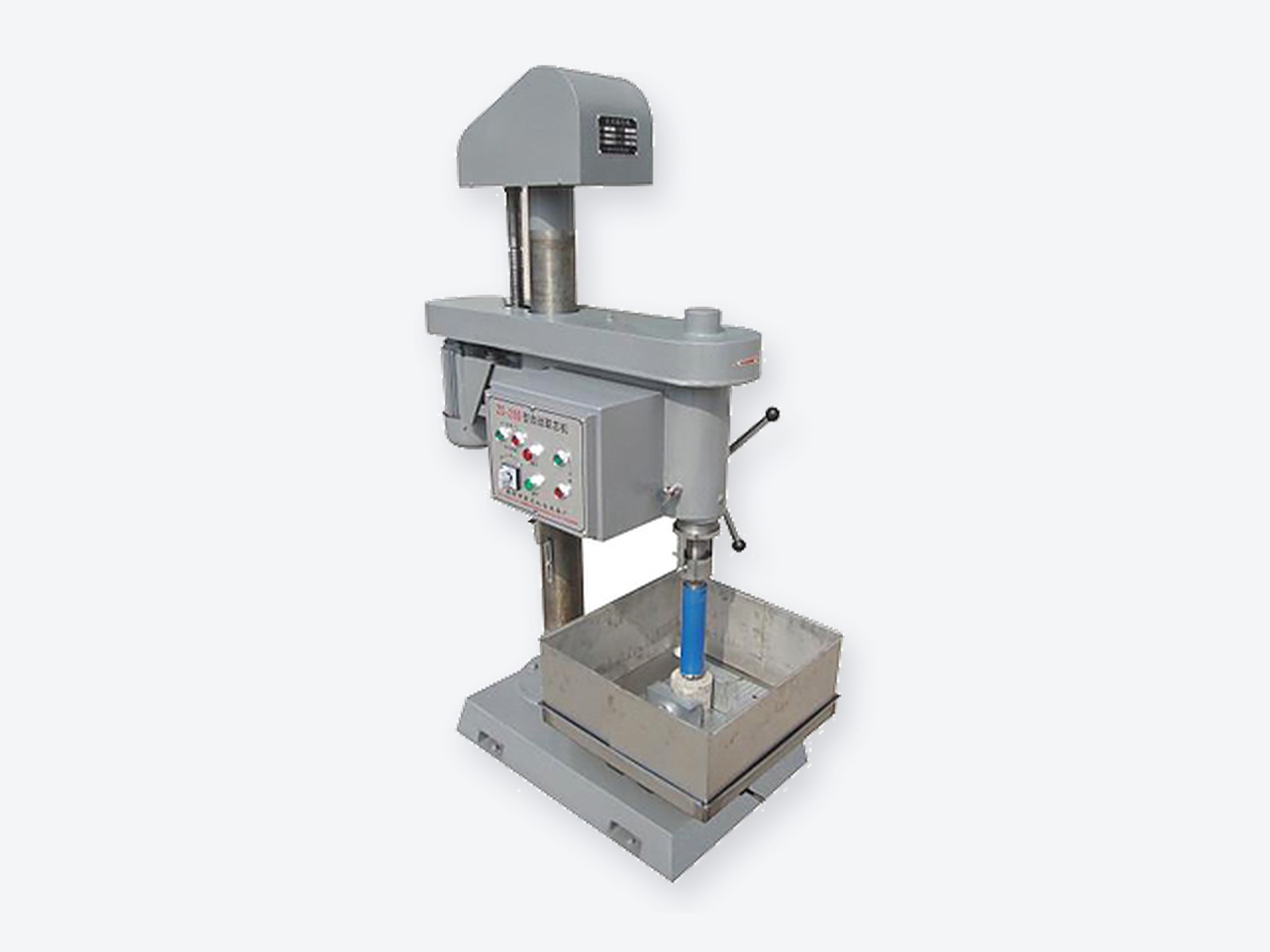

LS-RM-CORE200 Automatic Rock Core Drilling Machine

Configured for ASTM D4543, ISRM Suggested Methods workflows

LS-RM-CORE200 Automatic Rock Core Drilling Machine is a automatic rock coring, specimen cutting and core grinding machines for ASTM D4543, ISRM Suggested Methods workflows.

Core Diameter

25–200 mm

Diamond bits

Drilling Depth

400 mm

Maximum

Downfeed

3 Speeds

Hardness matching

Direct Inquiry Technical Chat

LS-RM-CORE200 Automatic Rock Core Drilling Machine ASTM D4543, ISRM Suggested Methods

Automatic Wet-Coring Cycle

After the specimen is clamped, motor start and downfeed controls complete the drilling cycle with less manual feed variation.

Broad Diamond-Bit Range

Interchangeable 25–200 mm bits prepare common laboratory core diameters from irregular block material.

Hardness-Matched Downfeed

High, medium, and low feed selections let technicians adapt the drilling rate to different rock and concrete strengths.

Standards

Standard

ASTM D4543

ISRM Suggested Methods

Application & Search Guide

Testing Method

Rock coring, specimen cutting, and end grinding

LS-RM-CORE200 Automatic Rock Core Drilling Machine is rock specimen preparation equipment for core extraction, cutting, parallel-face preparation, or end grinding under ASTM D4543, ISRM Suggested Methods. It supports rock mechanics laboratories that need controlled core or block geometry before compression, triaxial, creep, point load, permeability, or direct shear testing.

Technical FAQ

What is LS-RM-CORE200 Automatic Rock Core Drilling Machine used for?

LS-RM-CORE200 Automatic Rock Core Drilling Machine is used for rock specimen preparation workflows in civil engineering materials laboratories, quality control labs, research programs, and construction material acceptance testing.

Which standards does LS-RM-CORE200 support?

LS-RM-CORE200 supports ASTM D4543, ISRM Suggested Methods. Lithostek can also configure reporting fields, accessories, and calibration documents around local project or laboratory requirements.

Can Lithostek configure LS-RM-CORE200 for my laboratory?

Yes. Lithostek application engineers can review specimen format, target standards, throughput, power supply, data output, and training requirements before quoting a suitable configuration.
