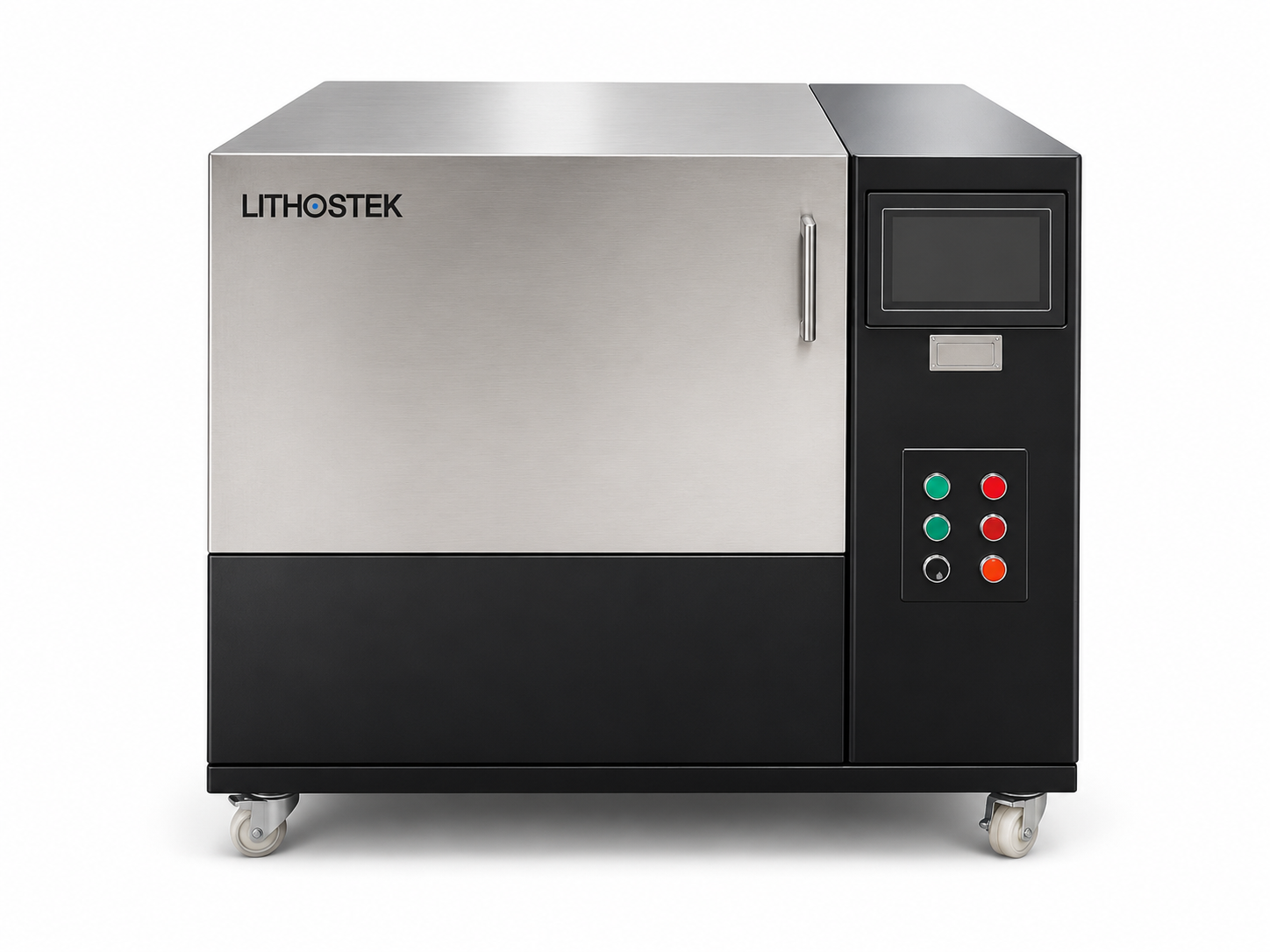

LS-DR-1 Guarded Hot Plate Thermal Conductivity Tester
LS-DR-1 Guarded Hot Plate Thermal Conductivity Tester is a thermal conductivity tester with guarded hot plate for ASTM C177, ISO 8302 workflows.
Steady-State Plate Method
Uses a guarded plate heat-transfer workflow for direct thermal conductivity measurement of flat insulation, polymer, composite, glass, foam, and building material specimens.
Controlled Hot and Cold Plates
Independent hot and cold plate control supports stable temperature gradients, helping reduce environmental disturbance and improve repeatability during steady-state testing.
Automatic Parallel Alignment
The specimen and plate system is designed to maintain parallel contact, reducing alignment error and improving heat-flow consistency across the sample surface.
Thickness and Pressure Monitoring
Integrated 0-100 mm thickness range and 0-500 N pressure measurement support controlled specimen contact conditions for more reliable thermal conductivity data.
Self-Calibration Support
Thermal conductivity and heating power calibration functions help the laboratory maintain confidence in long-term system performance and routine QC reporting.
Windows-Based Analysis Software
Automated data processing software supports measurement control, heat-transfer calculation, result review, and report output for production and research environments.
Application & Search Guide
Guarded Hot Plate Thermal Conductivity for thermal analysis laboratories
LS-DR-1 Guarded Hot Plate Thermal Conductivity Tester is configured for guarded hot plate thermal conductivity in thermal analysis laboratories under ASTM C177, ISO 8302. It supports material producers, civil engineering labs, universities, and inspection agencies that need repeatable test data, clear reporting, and standards-ready workflows.
What is LS-DR-1 Guarded Hot Plate Thermal Conductivity Tester used for?
LS-DR-1 Guarded Hot Plate Thermal Conductivity Tester is used for guarded hot plate thermal conductivity workflows in civil engineering materials laboratories, quality control labs, research programs, and construction material acceptance testing.
Which standards does LS-DR-1 support?
LS-DR-1 supports ASTM C177, ISO 8302. Lithostek can also configure reporting fields, accessories, and calibration documents around local project or laboratory requirements.
Can Lithostek configure LS-DR-1 for my laboratory?
Yes. Lithostek application engineers can review specimen format, target standards, throughput, power supply, data output, and training requirements before quoting a suitable configuration.
