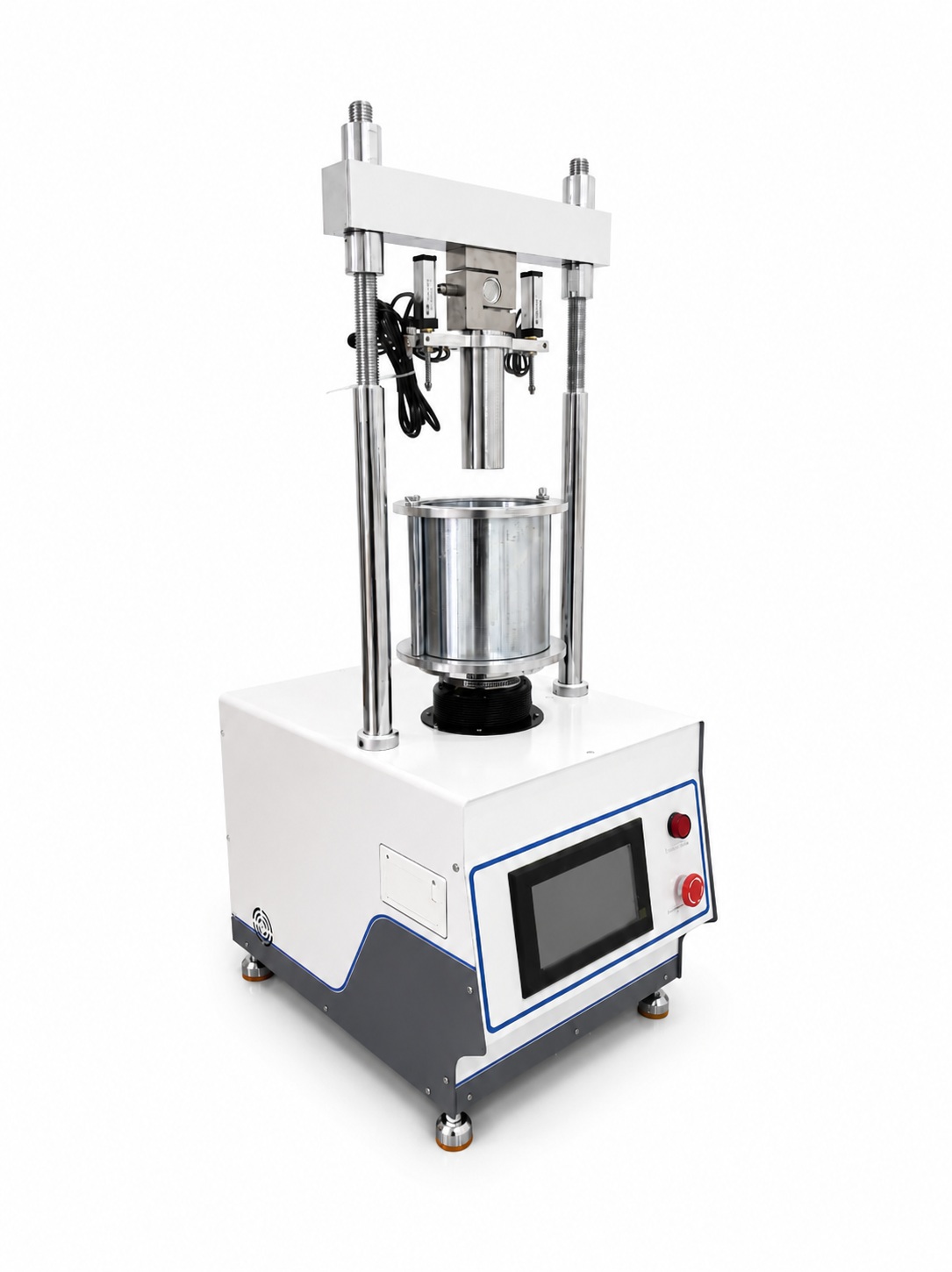

LSTM-100 100 kN CBR, Marshall and Compression Testing Machine

Name: LSTM-100 100 kN CBR, Marshall and Compression Testing Machine
Brand: Lithostek
SKU: ls-lstm100

Configured for ASTM D1883, AASHTO T193, BS 1377-4, ASTM D6927, AASHTO T245, EN 12697-34 workflows

LSTM-100 100 kN CBR, Marshall and Compression Testing Machine is a CBR test machine and bearing capacity apparatus for ASTM D1883, AASHTO T193, BS 1377-4 workflows.

Capacity

100 kN

Benchtop frame

Programs

3-in-1

CBR / Marshall / Compression

Speed

0.1-60

mm/min

SELECT CONFIGURATION

Direct Inquiry Technical Chat

LSTM-100 100 kN CBR, Marshall and Compression Testing Machine ASTM D1883, AASHTO T193, BS 1377-4, ASTM D6927, AASHTO T245, EN 12697-34

Three Test Programs in One Frame

Integrated firmware supports CBR penetration, Marshall stability, and unconfined compression workflows with automatic result calculation.

100 kN Electromechanical Loading

The motorized screw-drive load frame provides the 100 kN capacity needed for higher-capacity CBR and routine compression work.

Touchscreen Curve Display

The 7-inch color touchscreen displays real-time load-displacement curves, test data, limits, and operating status without a separate PC.

Pavement and Asphalt Fixtures

Standard configuration includes a Marshall loading head for 101.6 mm specimens and a CBR mould with penetration piston.

Standards

Standard

ASTM D1883

AASHTO T193

BS 1377-4

ASTM D6927

AASHTO T245

EN 12697-34

Application & Search Guide

Testing Method

CBR & Bearing Capacity for soil laboratories

LSTM-100 100 kN CBR, Marshall and Compression Testing Machine is configured for cbr & bearing capacity in soil laboratories under ASTM D1883, AASHTO T193, BS 1377-4, ASTM D6927, AASHTO T245, EN 12697-34. It supports material producers, civil engineering labs, universities, and inspection agencies that need repeatable test data, clear reporting, and standards-ready workflows.

Technical FAQ

What is LSTM-100 100 kN CBR, Marshall and Compression Testing Machine used for?

LSTM-100 100 kN CBR, Marshall and Compression Testing Machine is used for cbr & bearing capacity workflows in civil engineering materials laboratories, quality control labs, research programs, and construction material acceptance testing.

Which standards does LSTM-100 support?

LSTM-100 supports ASTM D1883, AASHTO T193, BS 1377-4, ASTM D6927, AASHTO T245, EN 12697-34. Lithostek can also configure reporting fields, accessories, and calibration documents around local project or laboratory requirements.

Can Lithostek configure LSTM-100 for my laboratory?

Yes. Lithostek application engineers can review specimen format, target standards, throughput, power supply, data output, and training requirements before quoting a suitable configuration.
