LS-SGF-15R1 Hydrostatic Specific Gravity Balance

Configured for laboratory and production workflows

LS-SGF-15R1 Hydrostatic Specific Gravity Balance is a aggregate density specific gravity and absorption equipment for laboratory and production workflows.

Capacity

15 kg

Coarse-aggregate class

Readability

0.1 g

Digital load cell

Basket

Ø205 mm

Immersed wire construction

Power

110-240 V

50 / 60 Hz universal input

Direct Inquiry Technical Chat

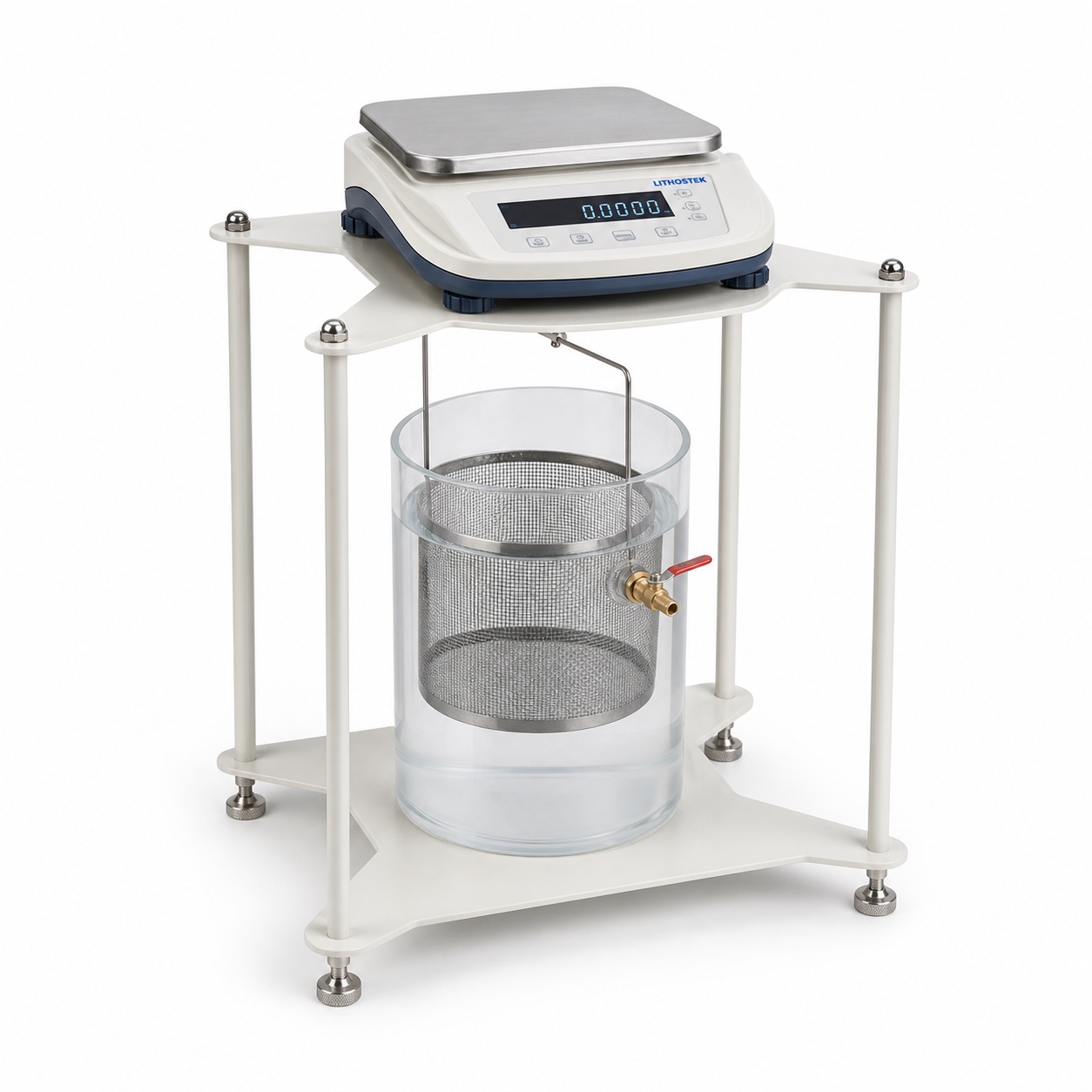

LS-SGF-15R1 Hydrostatic Specific Gravity Balance

Integrated Buoyancy-Weighing Layout

The balance, under-hook suspension, basket, and water tank are aligned in one rigid assembly instead of being sourced as disconnected components.

15 kg by 0.1 g Measurement Class

The selected load-cell configuration combines coarse-aggregate capacity with 0.1 g digital readability.

Visible Suspended Basket

A transparent tank keeps the immersed basket and sample position observable throughout hydrostatic weighing.

Laboratory-Ready Protection

Overload protection, full-capacity tare, adjustable feet, and a drain-equipped tank support repeatable daily operation.

Application & Search Guide

Testing Method

Aggregate density, specific gravity, and absorption testing

LS-SGF-15R1 Hydrostatic Specific Gravity Balance is an integrated hydrostatic weighing platform for coarse-aggregate particle density and absorption workflows. The 15 kg by 0.1 g balance, immersed basket, and water tank support buoyancy weighing, while compliance depends on the complete selected method.

Technical FAQ

What is LS-SGF-15R1 Hydrostatic Specific Gravity Balance used for?

LS-SGF-15R1 Hydrostatic Specific Gravity Balance is used for aggregate density and absorption workflows in civil engineering materials laboratories, quality control labs, research programs, and construction material acceptance testing.

Which standards does LS-SGF-15R1 support?

LS-SGF-15R1 supports ASTM, EN, AASHTO, or project-specific laboratory procedures. Lithostek can also configure reporting fields, accessories, and calibration documents around local project or laboratory requirements.

Can Lithostek configure LS-SGF-15R1 for my laboratory?

Yes. Lithostek application engineers can review specimen format, target standards, throughput, power supply, data output, and training requirements before quoting a suitable configuration.
